a real universal performance console,
in the outstanding Eso's outlook!

ESO verse

Bestell-Nr. / Order N°: ESOverse
Preis / Price: sFr. 2680.--

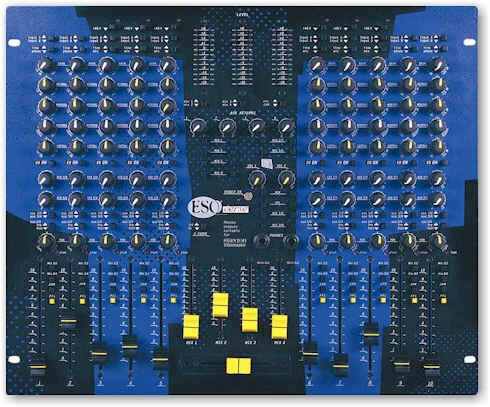

ESO  verse    -     C O N V E R T I B L E   M I X E R
ESO verse is designed as a convertible
DJ mixer  &  live music mixer
without repatching.
  • 10 stereo channels in a 19" structure console,

    • meaning 4 turntables, 20 line inputs (CD players, tape decks, samplers, etc.)
    and 6 MICs connected simultaneously.
  • 4 profy style Subgroups
  • Parametric EQ
  • 4 pre/post AUX
  • Direct Outs
  • Double PFL circuitry
  • Special JAM outputs to samplers
  • Optional X-Fader and remote control unit, all done with "easy to service" modules



ESO  verse    - INPUT  section
Phono / Line Stereo Inputs (Ch 1,2,9,10) Mic / Line Stereo Inputs (Ch 3,4,5,6,7,8)

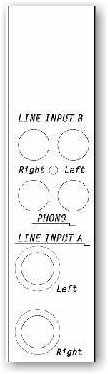

ESO verse_rear_phono_ch 48v Phantom

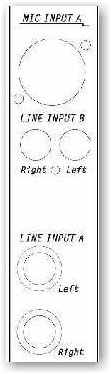

switch & LED		 ESO verse_rear_mic_ch
ESO verse_in_sel_phono ESO verse_in_sel_mic
A (balanced) or
B (unbalanced)
Line In selection
(both inputs available
at same time)

Ph/Line selection

Gain control

 A (balanced)  or
B (umbalanced)
Line In selection
(both inputs available
at same time)

Mic/line selection

Gain control

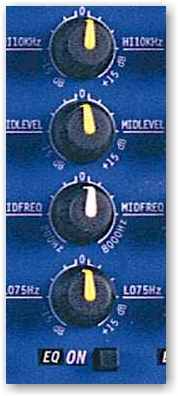

INPUT CH   -  EQ   section ESO verse
ESO verse_eq







3-band EQ
with sweepable mid control







EQ ON switch
INPUT CH  -  AUX   section ESO verse
ESO verse_aux_send





4 Aux Sends


selectable as
1/2 & 3/4

pre/post selection
on Aux 1 & 3

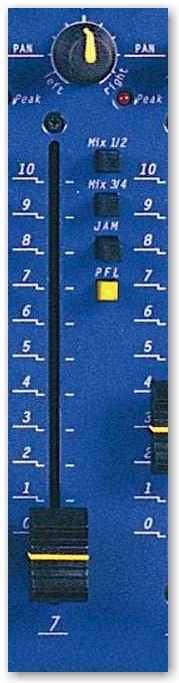

INPUT CH   -  ROUTING & MIX  section ESO verse
ESO verse_routing
PAN / BAL control

Peak LED




Routing to
MIX 1 to 4

JAM out  (for samplers)

PFL









Fader



ESO  verse    -    MASTER  CONTROLS
ESO verse METER  section
Complete VU meter section

Meters are assignable to any of 4 MIX subgroup outputs or PFL or JAMout
ESO verse_meters
ESO verse AUX  RET  section

Versatile AUX Return assignments on all 4 mix outputs
ESO verse_aux_return
ESO verse AUX  RET  section

Complete double circuitry Phones with assignments from Mix, Aux and PFL.

Phones outputs are suitable for Stanton Vibemaster
ESO verse_phones

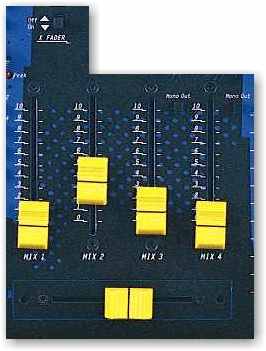

ESO verse MIX section rear panel
X Fader On switch for assignment on all Mix outputs.



4 Mix outputs with professional Faders and mono out switches on Mix out 3 and 4



Crossfader module assignable
X Fader works on all 10 channels as 2 groups of five
ESO verse_master
Each MIX Out

ESO verse_rear_master
