ESO hip
ESOshape ESOfun ESOweb ESO T-mix ESOone ESOhip ESOplug ESOpro ESOverse   ESO A1m ESO A2s ESO A3l		the perfect choice for home and semi-pro users
	Modular x-fader, versatile and professional channel modules for easy performance,  including one mic/phono/line channel, for DJ microphone  or other stereo instruments.    Bestell-Nr. / Order N°: ESOhip MK 2 Preis / Price: sFr. 520.--	All channels are provided with beat indicator for supported jam action and perfect sync.




	ESO  hip    -     INPUTS

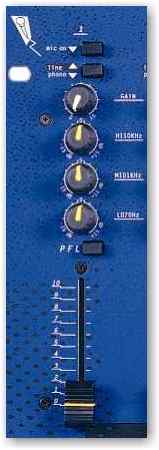

		3 Music Input Channels Simultaneously connect 3 turntables, 3 stereo lines (such as CD players) and a microphone Select phono/line inputs from front panel Professional Centered EQ on all 3 input channels EQ is +/- 15db at 70hz(shelf), 1khz (peak/dip) and 10khz (shelf) Music channels all have Pre Fade Listen to "preview" audio 1 ¼ inch Balanced Mic Input with level control on Channel 1



ESO  hip    -     OUTPUTS
4 separate stereo outputs Main (House) Output 1 is variable via rotary level control with Left/Right balance and unbalanced RCA connectors Monitor (Booth) Output is variable using rotary level control with unbalanced RCA connectors Headphone 1 Output has unique "pan" to hear both PFL and Main output together Headphone 2 Output also has PFL/Main pan Both headphones outputs are suitable for Stanton Vibemaster

	ESO   hip       -      OTHER   FEATURES
		All Professional Grade Faders and rotary pots Yellow Crossfader on Inputs 2 & 3 Adjustable gain on all 3 input channels All channels are provided with a special beat indicator (1/2/3 150Hz Peak LEDs) for supported jam action and perfect sync.  Rotary pots for non-mix functions Twin 12 segment LED Multicolor Main Output Meters Professional Grade Outboard Power Supply
