An innovative solution
already appreciated by american DJs.

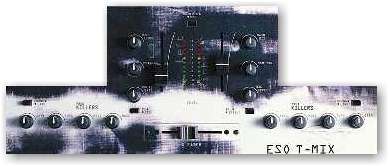

ESO T-mix

Bestell-Nr. / Order N°: ESO-T-mix
Preis / Price: sFr. 555.--
Now DJ has in one-hand space all the mix controls
volume, x-fade, kill-tone & FX
+
the turntable pitch control
that will take the place in the "T" shape.
ESO T-mix
which has almost the same specs of ESO fun,
but with a T-shape, also features the exclusive
X-phaser.



ESO  T-mix    -     X-phaser effect stage

ESO T-mix is completed with the exclusive X-phaser effect stage.

This original FX creates a sound shaping that is extremely creative for the DJ in combination with x-fade and frequency killers tone controls.

 ESO T-mix Phaser Effect
    X-phaser controls allow to select automatic (CPU)  or manual (DJ) modes for the phase cycle, and the volume of the effect.

    The volume knob can be alternatively used to balance the main mix output.



ESO  T-mix    -     INPUTS
ESO T-mix_ch
 Fitted in an innovative
T-shape console,
Input Channels feature an original horizontal lay-out.
  • 3 Input Channels total
  • Simultaneously connect 2 turntables, 2 stereo lines (such as CD players) and a microphone
  • 2 stereo music input channels with RCA input connectors and level control Faders
  • Select phono / line inputs from front panel
  • Frequency Killer EQ on all input channels

    • EQ is +24 / -9db at 70hz(shelf), 1khz (peak/dip) and 10khz (shelf)
  • 1 ¼ inch Balanced Mic Input with rotary level control


ESO  T-mix    -     OUTPUTS

  • 4 separate stereo outputs
  • Main Mix Output 1 is variable with rotary level control and unbalanced RCA output connectors
  • Monitor (Booth) Output 2 is variable using rotary level control and unbalanced RCA output connectors
  • Record Output 3 is line level, unbalanced RCA connectors
  • Headphones Output 4 is variable via rotary control for PFL and main mix listening
ESO T-mix_phones

ESO T-mix_main_mix

ESO   T-mix       -      OTHER   FEATURES
ESO T-mix_meters
  • All Professional Grade faders and rotary pots
  • Modular Crossfader 60mm (option 45mm)
  • Adjustable gain on each stereo input channel
  • Music channels all have Pre Fade Listen to "preview" audio
  • Rotary pots for all non-mix functions
  • Twin 12 segment LED Multicolor Main Output Meters
  • Professional Grade Outboard Power Supply
