The perfect choice
for multiple amp rack installation,
for clubs with a touch of style.

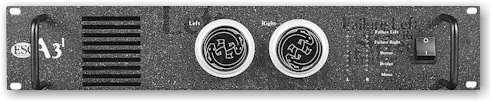

ESO A3l
2 x 400 Watts   @  4 Ohms
2 rack units

Pure class A  @ listening volume


Bestell-Nr. / Order N°: A3L
Preis / Price: sFr. 1580.--
ESO  power amps    -    ESO A3l
ESO A3l_knobs The amp works in
pure class A
at listening volume power
(up to 20 Watts),
Two LED bargraphs as VU-meters for Left & Right programs. ESO A3l_leds
Protections against overload, short circuit, direct coupling, separate for each channel.
ESO A3l_vent A special vented tube ensures perfect cooling of the power elements.  Immediate electronic switch between stereo/mono and bridge mode, with possibility of both connections always plugged-in.



ESO A3l  -    Technical  Specifications
Power RMS 2 x 400 Watts  @ 4 Ohms
2 x 270 Watts  @ 8 Ohms
bridged 800 Watts
Inputs 2 XLR, 2 stereo jacks
Outputs 3 Speakon (2 stereo. 1 bridge)
Controls power On, volume, VU meters,
signal/clip/protect LEDs
Slew rate V/ms   >40
Frequency response 20-60k Hz  +0-1 dB
Damping factor >200
Input impedance 10k Ohms
Ch separation >70dB
THD <0,05%
Protections temp, CC, DC
S/N ratio >90 dB
Width 483 mm
Height   90 mm
Depth 475 mm
Gross Weight 17,5 Kg
