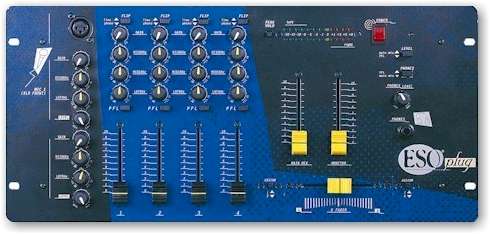

The perfect solution for
a small but complete DJ console,
in a standard rack size

ESO plug


Bestell-Nr. / Order N°: ESOplug

Preis / Price: sFr. 860.--




ESO  plug    -     INPUTS

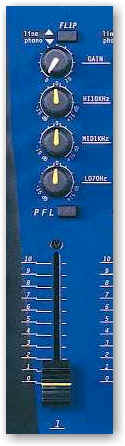

ESO plug_ch_phono_line

  • 4 Music Input Channels
  • Simultaneously connect 4 turntables and 4 stereo lines (such as CD players) and 2 microphones
  • 4 stereo music input channels RCA input connectors and black level control faders
  • Select phono/line inputs from front panel
  • Professional EQ on each stereo input

  • EQ is +/- 15db at 70Hz(shelf), 1kHz (peak/dip) and 10kHz (shelf)
  • Music channels all have Pre Fade Listen to "preview" audio

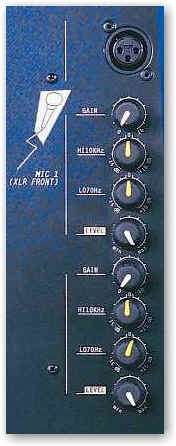

    Mic Input 1 uses rotary level control with balanced XLR input connector

  • Mic Input 2 uses rotary level control with balanced ¼ inch input connector
  • EQ on both Mic inputs

  • EQ is +/- 15db at 70Hz(shelf)
    and 10kHz (shelf)
ESO plug_ch_mic


ESO  plug    -     OUTPUTS
Main (House) Output 1 is variable with yellow control fader and unbalanced ¼ jack connectors plus RCA connectors
ESO plug_main Monitor (Booth) Output 2 is variable with yellow control fader and unbalanced RCA connectors

  • 4 separate stereo outputs
  • Record Output 3 is line level, unbalanced RCA connectors
  • Headphone output 4 is variable via rotary level control with PFL/Main switch
ESO plug_phones

ESO   plug       -      OTHER   FEATURES

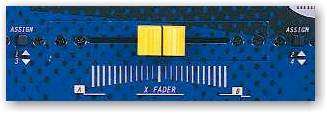

ESO plug_xfader Yellow Crossfader
assignable to Input 1/3 or 2/4
  • All Professional Grade faders and rotary pots
  • Adjustable gain on each input channel
  • Professional EQ on each input channel
  • All rotary pots for non-mix functions
  • Output Meter Average / Peak Hold Switch
  • Professional Grade Outboard Power Supply
Twin 12 segment LED
Main Output Meters
selectable to read PFL or Mains

ESO plug_meters
