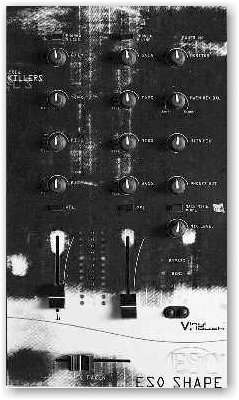

ESO shape
World unique in
DJ mixers,
ESOshape features the

ESO Vinyl Touch logo
pitch lock

the revolutionary fully digital real-time pitch-stretching function!

ESO shape:
Bestell-Nr. / Order N°: ESOshape
Preis / Price: sFr. 1250.--

ESO fun
Bestell-Nr. / Order N°: ESOfun
Preis / Price: sFr. 499.--

ESO Vinyl Touch Interface:
Bestell-Nr. / Order N°: AC 0002
Preis / Price: sFr. 65.--



ESO fun
ESO fun is the ESOshape without Digital functions (Vinyl Touch®) and
is the ideal console for
professional DJs
who need to create their  music in minimum space



ESO  shape    -     VINYL TOUCH ® Pitch Lock
    World unique in dj mixers, and fully digital, Vinyl Touch Pitch Lock is able to completely eliminate frequency alterations caused from manipulation of the running vinyl disc or CD.

    Some of the "classic" problems of mixing are greatly solved from Vinyl Touch:
    - touching the turntable will not affect the tone of the sound
    - all tracks will be usable for mix always getting the original pitch of the record, at all bpm!
    - and we do not consider all new possibilities introduced from DJs creativity.

 ESO vinyl touch
    Digital, but easy!

    Vinyl Touch Pitch Lock has 3 functions:

  • BYPASS: Vinyl Touch is bypassed, green light to full scratches, backspins...!
  • BEND: keeps the tone if turntable is touched but allow tone changing with pitch control.
  • PITCH: keeps always the original tone of the record, both changing the pitch control or touching the turntable.


    • And all this just with a single key.

 ESOshape Vinyl Touch Pitch Lock can be fitted with its proper interfaces for most of hardware on the market (Technics, Gemini, Pioneer, Denon, etc.)*  both for turntables and CDs.

* (trademarks of their respective holders)



ESO  shape  /  ESO  fun      -     INPUTS
ESO shape_in_sel

ESO shape_kill

  • 5 Inputs on 2 channels total
  • Simultaneously connect 2 turntables, 2 stereo lines (such as CD players) and 1 microphone
  • 2 stereo music input channels with RCA input connectors and level control Faders
  • Select phono / line inputs from front panel
  • 1  ¼ inch Balanced Mic Input with rotary level control
  • Frequency Killer EQ on all input channels

    • EQ is +24 / -9db at 70hz(shelf), 1khz (peak/dip) and 10khz (shelf)


ESO  shape  /  ESO  fun     -      OUTPUTS

  • 4 separate stereo outputs
  • Main Mix Output 1 is variable with rotary level control and unbalanced RCA output connectors
  • Monitor (Booth) Output 2 is variable using rotary level control and unbalanced RCA output connectors
  • Record Output 3 is line level, unbalanced RCA connectors
  • Headphones Output 4 is variable via rotary control for PFL and main mix listening

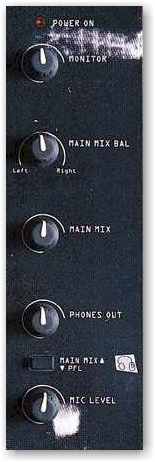

 ESO shape_master

ESO  shape  /  ESO  fun      -     OTHER   FEATURES
ESO shape_ch_fad & PFL
  • Music channels all have Pre Fade Listen to "preview" audio
  • All Professional Grade faders and rotary pots
  • Modular Crossfader 60mm (option 45mm)
  • Adjustable gain on each stereo input channel
  • Rotary pots for all non-mix functions
  • Twin 12 segment LED Multicolor Main Output Meters
  • Big distance between knobs for complete ease of use
  • Professional Grade Outboard Power Supply
